KM1280i series
Delivering High Productivity, Reliability and Quality for Industrial Applications.
Suitable for upgrading of print resolution from KM1024i series.
Specifications
| Printhead Name | KM1280iMHH | KM1280iLHH |
|---|---|---|
| Technology | Piezo Drop on Demand | |
| Drive System | Independent drive system | |
| Resolution | 450npi（112.5npi x 4lines） | |
| Number of Nozzles | 1280 nozzles（320 nozzles x 4lines） | |
| Drop Size | 10pl | 19pl |
| Max Frequency | 45kHz(Max.） 40kHz（Typical） |
31kHz |
| Printing Width | 72mm | |
| Dimensions | W131mm x D18mm x H105mm | |
| Weight | Approx. 185g | |
| Grey scale | Max.16 levels | |
| Internal Heater | Available | Available |
| Ink type | Solvent, UV, Oil | Solvent, UV, Oil |
| Water-based Ink | - | - |
* Specifications above could be changed without any announcement.

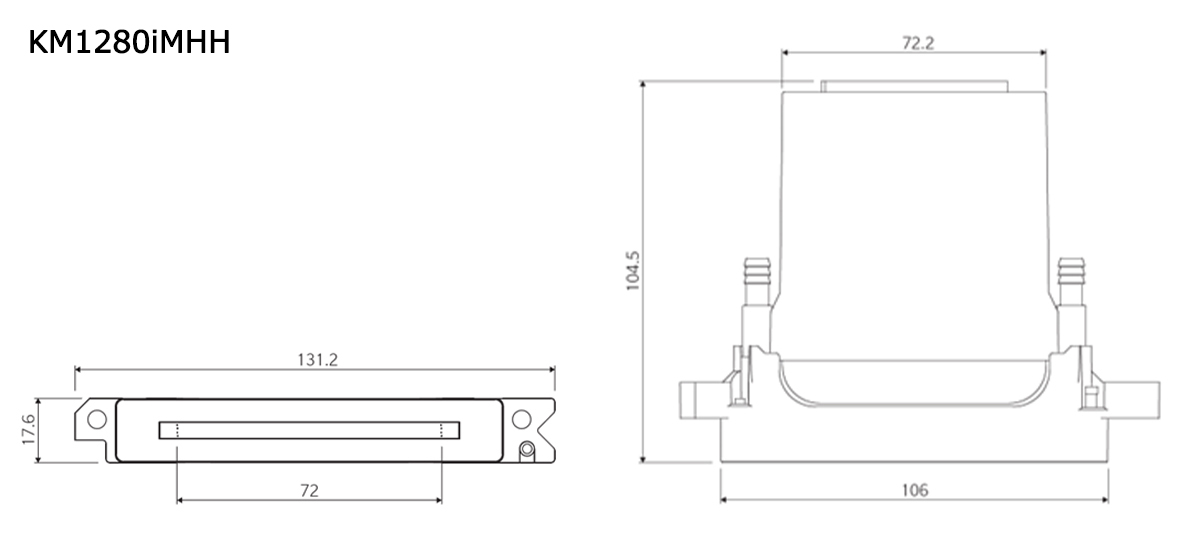

2D design
* The specifications are as of January 2021 and subject to change without notice
